SensoIRIS MIO04

Operating Voltage Range 15 – 32VDC
Consumption, stand-by mode 175μA@27VDC
Nom. current consumption 200µA@27VDC
Outputs, electrical characteristics (max.) DC 30V/1A; AC 125V/0,5A
Wire Gauge for terminals 0.4mm² – 2.0mm²
Operating temperature -10°C to +60°C
Protection IP40
Weight ~230g
Dimensions 142x80x45 mm
Add to wishlist
Categories: ,
Description

Description

SensoIRIS MIO04 عبارة عن وحدة قابلة للتوجيه مع 4 مخرجات تتابع. تم تصميم الوحدة للتطبيق في أنظمة إنذار الحريق القابلة للعنونة، ودعم بروتوكول اتصالات TTE.

تتحكم الوحدة في 4 مخرجات تتابع.

يتم تشغيل SensoIRIS MIO04 من لوحة النار ويمكن التحكم فيه عبر بروتوكول الاتصال.

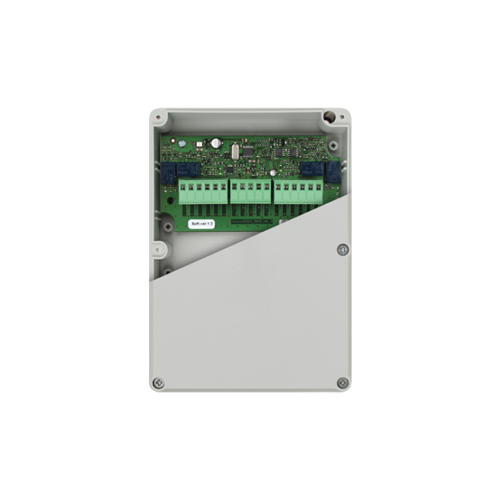

يتم تركيب الوحدة في صندوق بلاستيكي صغير منفصل مناسب للتركيب على الحائط، مع غطاء شفاف للفحص البصري.

شهادة BOSEC.

4 مخرجات التتابع
حلقة مدعومة
بنيت في العازلة
توضع في صندوق بلاستيكي بغطاء شفاف لسهولة الفحص
EN54-18 وEN54-17:2005 معتمدان

Attachment

Datasheet

Download

BOSEC certificate

Download
