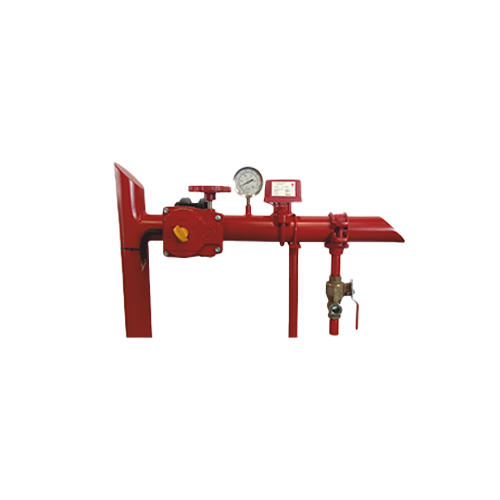

Zone Control Valve Assembly Accessories

Model No.: LF-PGX

Description

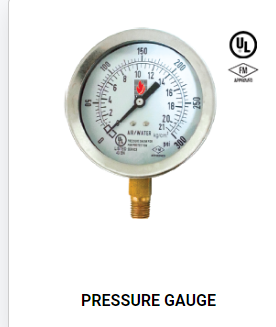

Pressure Gauges are specifically designed for Fire Sprinkler Services. LF-PGX has corrosion resistant polished stainless steel case and Bazel and Brass wetted parts. The dial has pressure reading in KG/SQCM and PSI. The gauge window is hardened glass. The pressure gauge must be mounted by square provided for spanner grip on the socket and not by turning the case. Turning of case will damage the gauge. Use PTFE tape around male threads of the gauge for sealing. Pressure gauge must be mounted in vertical position and isolated with valve or cock. The pressure gauge must be handled with due care. For best results, the storage as well as any further shipment be made in original packing only. The pressure gauge, which is visibly damaged, should not be installed. It is recommended that the pressure gauges must be inspected regularly for possible corrosion or damage. The gauge must be periodically calibrated as per requirement of NFPA/TAC or as per local authority having jurisdiction.

الحجم: 50، 80، 100، 150، 200 ملحوظة صمام الملف اللولبي: 24 فولت تيار مستمر الحد الأقصى لضغط العمل: 17.5 كجم/سم مربع. اتصال نهاية النظام: ذات حواف
