Zone Control Valve Assembly Accessories
Zone control valves are designed to operate utilizing electrical service for actuation. A sprinkler system must be capable of shut down after the fire has been controlled, and for periodic maintenance and modification. Control valves can provide this function. In the simplest system a single shut-off valve may be located at the point where the water supply enters the building.

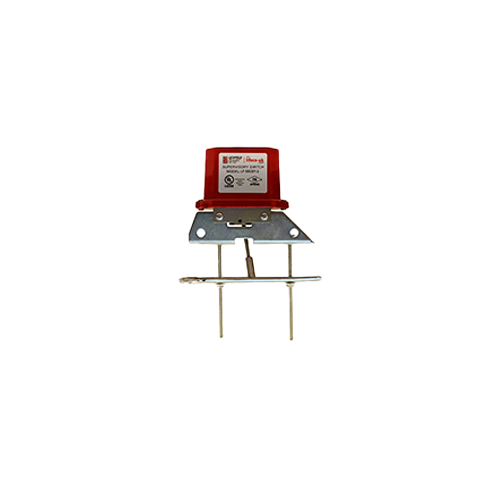

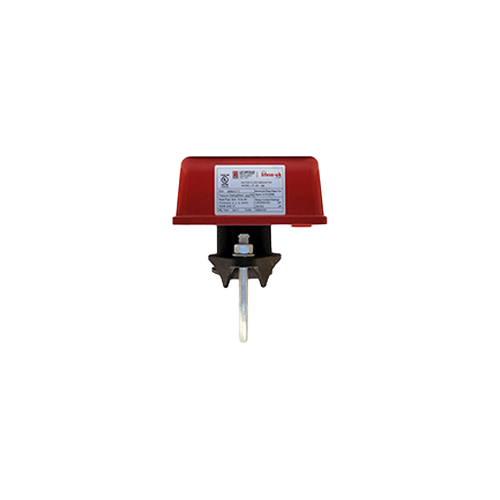

The Package consists of: Butterfly Valve, Test & Drain Valve, Pressure Gauge, Waterflow Indicator, Supervisory Switch & Water Flow Indicator
Attachment
Related products
Addressable analog control panel
2 to 8 episodes or 2 to 16 episodes
127 addressable points per SLC loop
Single or dual slot (includes area LED module and printer)
Modular and expandable electronics
4 programmable NACs; Class B or 2 Class A
7 inch color resistive touch screen with easy to use user interface
Power supply options (5.25A or 10.25A)
Programmable (3) inputs and (5) relay outputs
Networkable with programmable functions
Coincidences are OR and AND in cause and effect
Programming via USB or PC
Temperature Fire Alarm Detector
Application
The F10 is suitable for environments, where sudden large temperature changes are considered as normal, rooms with high concentration of vaporous, exhaust gases, dust, etc. For example: kitchens, garages, boiler rooms or other places where it is not convenient to install fire alarm optical smoke detectors.
Manual Call Point
Operating voltage 9 ÷ 30 VDC
Nominal operating
voltage 24 VDC
Current consumption in
alarm state
23mA/15V; 38mA/24V;
48mA/30V
Installation wires 0,4mm2 ÷ 2.0mm2
Operation temperature -10°C ÷ +60°C
Relative humidity ≤93% @ +40°C
Type of the frangible
element A
Material (plastic), Color ABS, red
Degree of protection IP40
Dimensions (incl. base) 90x57x90mm
Gas extinguishing panel
Model Number: LF/EX
Attributes
Solid steel powder-coated cabinet
Built-in battery and internal charger
System status indicator
Charge & error indicators. Battery failure
Alarm circuits monitored for both open and short circuit
Manual trigger switch on front
2 monitored detection zones
Gas release
knockout monitored on top and bottom sides for easy installation
Communication relay
Control switch Release
timer
Robin fire alarm addressable control panel
Model Number: LF-6100A/1, LF-6100A/2 & LF-6100A/4
Attributes
Available in 1, 2 and 4 Smart Detection Circuits
5" LCD Display - 320 x 240 dpi Resolution
Up to 127 devices each episode.
Logic-controlled output functions
15 LED status indicators
21 user-friendly control keys
Laptop programming
Full field programming
