SF 200

Description

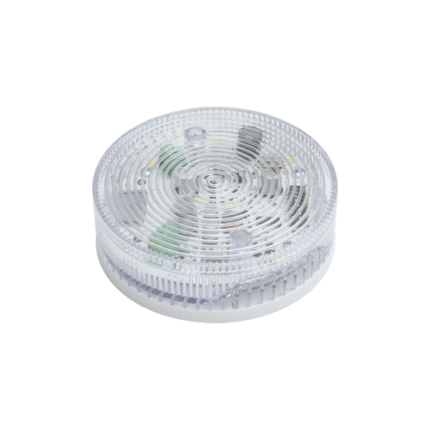

SF 200 عبارة عن صفارات إنذار بيزو تقليدية خارجية. تم تجهيز صفارة الإنذار بمؤشرين فلاش LED ومؤشر حالة واحد.

خرج الصوت – 96 ديسيبل
ستروب LED
مؤشر الحالة
حافظة بلاستيكية
حماية IP54 للإلكترونيات

Attachment

Start typing to see products you are looking for.

Operating Voltage Range	20-28VDC
Maximal consumption (main tone type 27)
– low volume level, without strobe	8.5 mА @ 24VDC
– low volume level, with strobe	12 mА @ 24VDC
– high volume level, without strobe	22mA @ 24VDC
– high volume level, with strobe	25mA @ 24VDC
Sound volume (main tone type 27)
– low volume	87-96dB @ 1m
– high volume	95-104dB @ 1m
Sound volume (other tone types)
– low volume	82-98dB @ 1m
– high volume	85-104dB @ 1m
Frequency of the strobe flashing	1Hz
Wire Gauge for terminals	0.2 – 1.5mm2
Operating temperature	-10°C ÷ +60°C
IP Protection	IP21C
Relative humidity resistance	(93 ± 3)% @ +40°C
Color	white transparent
Material	SAN
Weight	~248g
Dimensions	102x32mm

Operating Voltage Range	16-29VDC
Maximal consumption	75mA @ 24VDC
Maximal sound volume	102dB @ 1m
Frequency range	2.7-4kHz
Frequency of the strobe flashing	2Hz/0.6W
Type of tone	monotone
Color LEDs	red
Material/Color	ABS, red
Dimensions	94x45x69mm

Main Power Supply	110÷230VAC,50÷60 Hz, 2x200W

Back-up Power Supply- lead batteries one in the main block + one in the Block expander	12V/ 18Ah
Nominally internal battery resistance	<0,3Ohm
Storage Temperature	-10˚C to +60˚C
Operating temperature	-5°C to +40°C
Dust and moisture protection	IP30
Relative Humidity (without condense)	up to 95%
Dimensions	430/330/120mm
Weight	Min. configuration 7kg/ Max. configuration 15kg (without battery)

Main Power Supply	230VAC +10%/-15%,50÷60 Hz
Back-up Power Supply- lead batteries	12V/18Ah
Nominally internal battery resistance	<0,3Ohm
Storage Temperature	-10˚C to +60˚C
Operating temperature	-5°C to +40°C
Dust and moisture protection	IP 30
Relative Humidity	up to 95%(without condense)
Dimensions	430/330/120mm
Weight	6kg(without battery)
