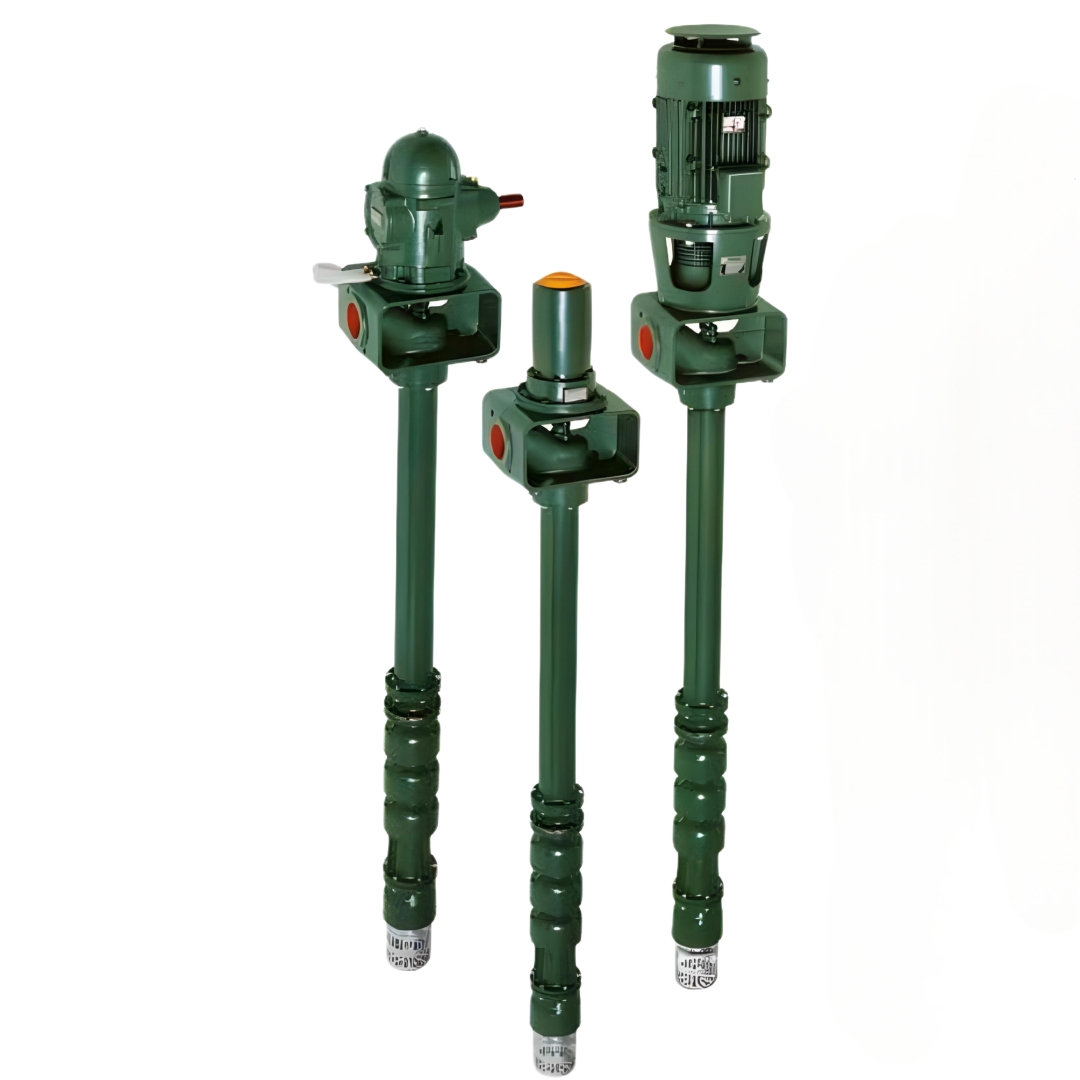

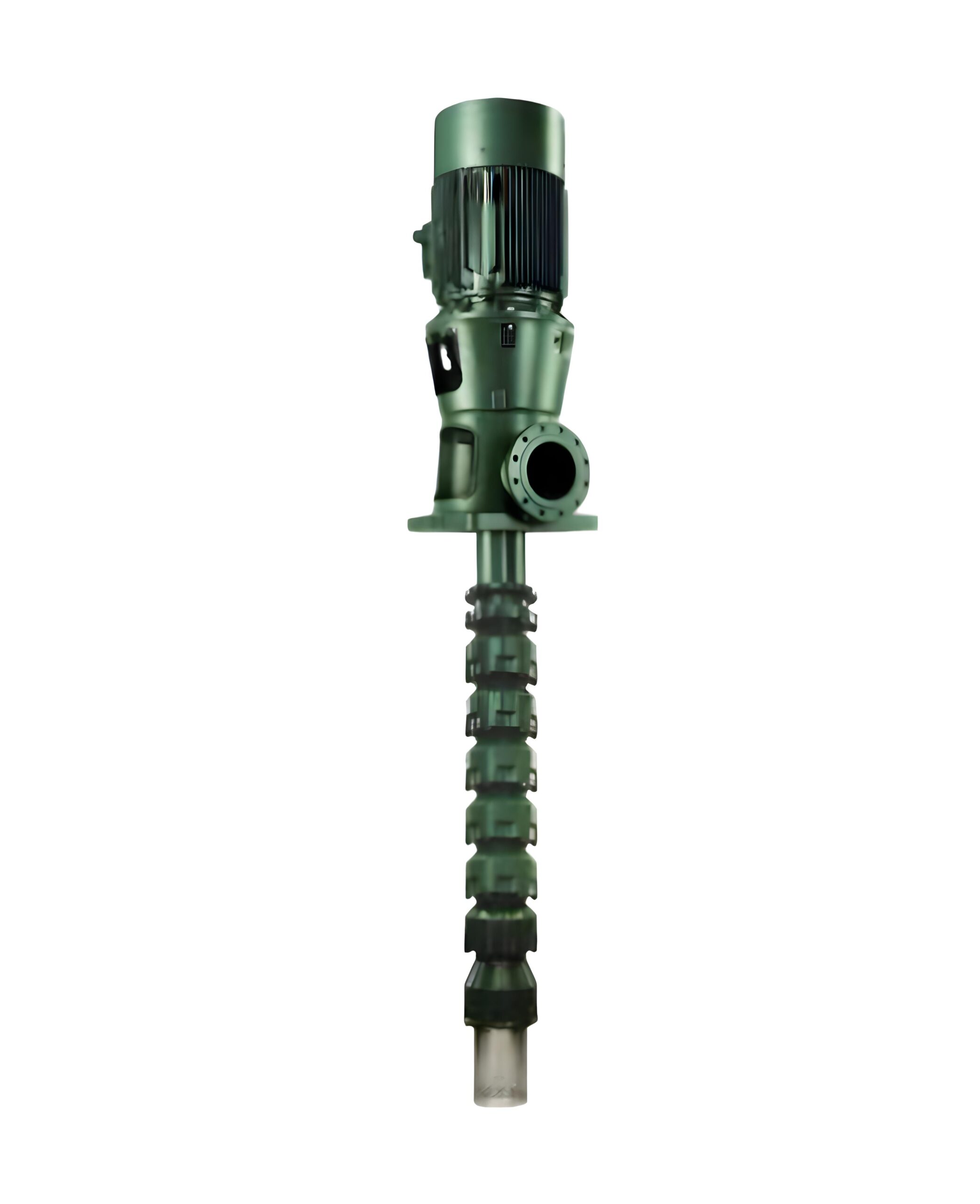

Caprari P6 – P18 Series
Vertical turbine pumps
| Flow rate up to | l/s | 400 |
| Head up to | m | 250 |
| Power up to | kW | 400 |
| Efficiency above | 84% |
Description
Attachment
Related products
مضخات إطفاء الحريق بالطرد المركزي
| Model No. | Rated Capacity (GPM) | Size(SucXDis) (inches) | UL Listed Rated Net Pressure Range (PSI) | FM Approved Rated Net Pressure Range (PSI) | SETSCO & CE Pressure(PSI) | Approx Speed (RPM) | Max Working Pressure (PSI) |
|---|---|---|---|---|---|---|---|
| SFP-50-20 EM-2G | 50 | 2 ½ X 2 | 74 - 93 | 74 - 93 | 74 - 93 | 2900 | 180 |
| SFP-50-20 EM-2G | 50 | 2 ½ X 2 | 79 - 99 | 79 - 99 | 79 - 99 | 3000 | 180 |
| SFP 50-20 EM | 50 | 2 x 1 ¼ | 68 - 87 | 68 - 88 | 68 - 87 | 2900 | 230 |
| SFP 50-20 EH | 50 | 2 x 1 ¼ | 101 -129 | 102 - 129 | 101 -129 | 3500 | 230 |
| SFP 50-26 EM | 50 | 2 x 1 ¼ | 115 -140 | 115 - 133 | 115 -140 |

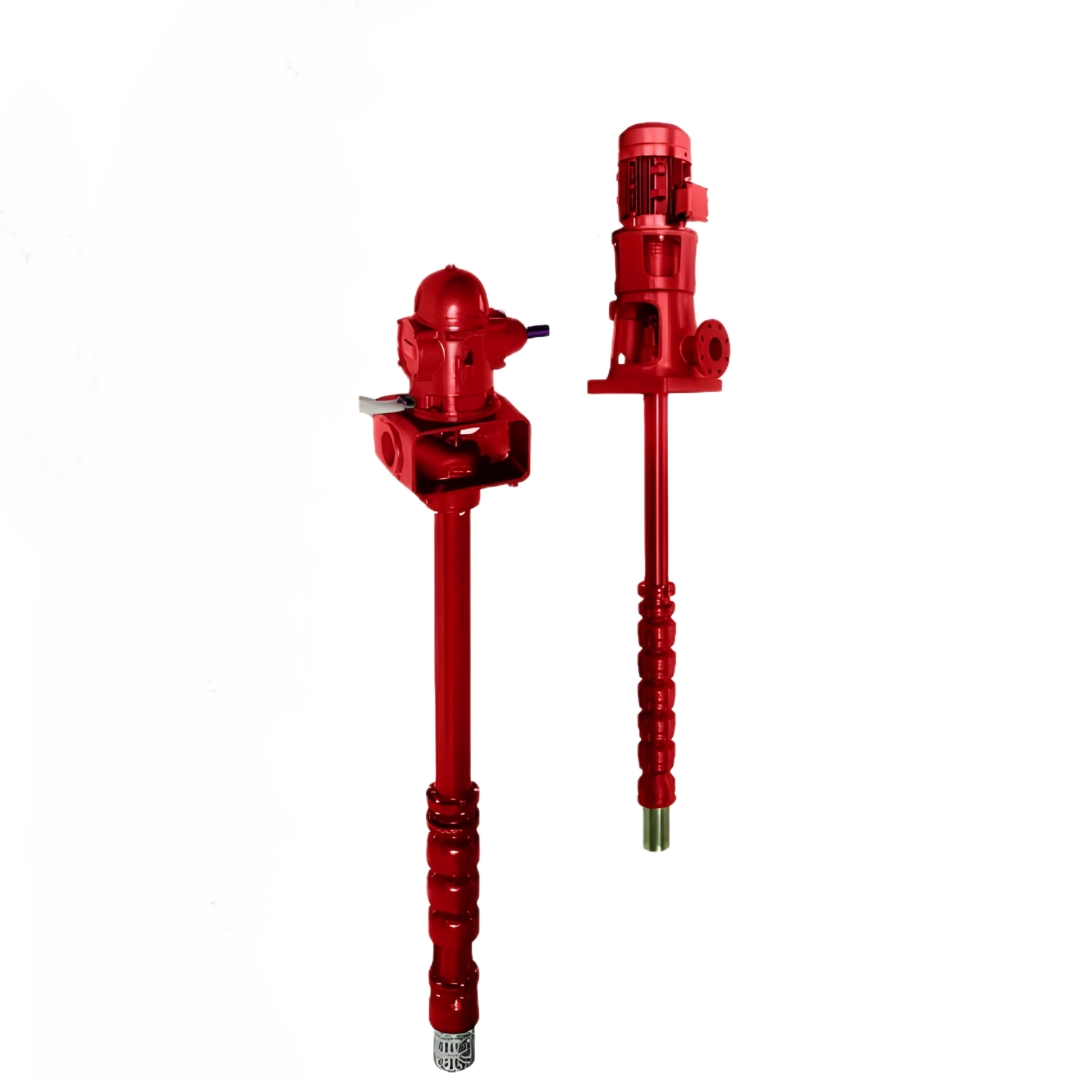

مضخات الحريق التوربينية العمودية ذات الطرد المركزي
- All Pumps are Hydrostatically Tested to minimum of 150% of its Maximum Working Pressure and can withstand Double the Max.Working Pressure.
- All Pumps have Clock-Wise Rotation when viewed from the Driver Side.
- All Pumps are Multistage with 2 stages as minimum requirement.
- “The rated speed marked on the pump can vary within +/-4% of the listed/ approved rated speed example: 3000 RPM pump can be driven with 2900 RPM Drivers.”
| Model No. | Capacity (GPM) | UL,SETSCO & CE Listed Net Pressure (PSI) | Number of Stages | FM Approved Rated Net Pressure (PSI) | Number of Stages | Approx Speed (RPM) |
|---|---|---|---|---|---|---|
| SFP-200-70VT | 200 | 40 - 248 | 2 - 12 | 40 - 289 | 2 - 12 | 1480 |
| SFP-200-70VT | 200 | 48 - 348 | 2 - 10 | 64 - 348 | 2 - 10 | 1480 |
| SFP-200-30VT | 200 | 60 - 305 | 2 - 6 | 2900 | ||
| SFP-200-30VT | 200 | 63 - 323 | 2 - 6 | 2980 | ||
| SFP-200-30VT | 200 | 64 - 327 | 2 - 6 |
المضخة القياسية – DJ
| Flow (GPM) | Skid Width (mm) | Skid Height (mm) | Skid Length (mm) | Diesel Engine (HP) | Jockey (HP/GPM) | Header Pipe |
|---|---|---|---|---|---|---|
| 50 | 700 | 1230 | 830 | 10 | 3 / 10 | 1.5" |
| 120 / 150 | 800 | 1280 | 1220 | 25 | 3 / 10 | 2" |
| 250 / 300 | 800 | 1420 | 1220 | 25 | 3 / 15 | 4" |
| 500 | 1000 | 1670 | 1600 | 60 | 5.5 / 25 | 6" |
| 750 | 1100 | 1760 | 1700 | 85 | 5.5 / 35 | 6" |
المضخات القياسية – EJ
EDJ Type Models
| Flow (GPM) | Skid Width (mm) | Skid Height (mm) | Skid Length (mm) | Motor (HP) | Jockey (HP/GPM) | Header Pipe |
|---|---|---|---|---|---|---|
| 50 | 700 | 1230 | 830 | 5.5 | 3 / 10 | 1.5" |
| 120 / 150 | 800 | 1250 | 1220 | 15 | 3 / 10 | 2" |
| 250 / 300 | 800 | 1420 | 1220 | 30 | 3 / 15 | 4" |
| 500 | 900 | 1660 | 1350 | 5.5 | 5.5 / 25 |
Electric Driven Skids
يقودها محرك كهربائي مدرج في قائمة UL.
محاذاة بشكل جيد ومقترنة للتشغيل المباشر.
يتم اختبار حزم التزلج مسبقًا وفحصها بدقة قبل إصدارها للعملاء.
تم تصميم الفولاذ الطري المطلي والمدرفل على الساخن لمقاومة التآكل والتآكل.
تصميم مدمج للانزلاق مع بصمة قدم صغيرة للتعديل التحديثي.
مستوى عالٍ من الجودة في تشطيب مواد البناء والتصنيع
